The QD desktop metal and hard material marking machine is a dot peen matrix engraver. It is widely applicable for industrial plate marking, but also to dot-carve labeling or tagging on any hard surface. QD Carbide Engraver is ideal for labeling of various materials with thickness up to 3 mm.

QD carbide engraver characteristics

It is efficient and fast, dust-proof, with smart digital pc control.

The computer-controlled carbide marking needle carries out high-impact through compressed air. It leaves a permanent, in-depth mark on the object, which cannot be achieved with the alternative uv printing, for example.

The machine has 4-driving tracks operation for enhanced marking stability and improved dot accuracy.

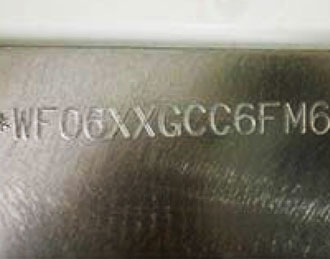

Мarking includes alphanumeric strings (date, VIN code, serial number), logos or 20-barcode information. The print on the metal or hard plastic material  meets any part identification needs.

Range of materials to mark

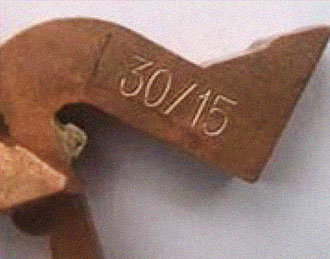

Metals:

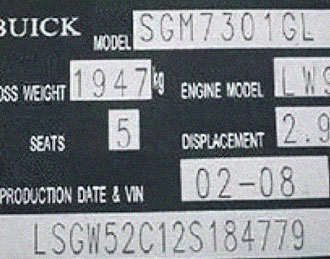

• Stainless steel,
• Bronze,
• Aluminum,
• Iron .

Other materials:

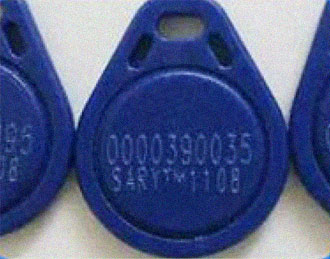

• Hard plastic surfaces,
• Cardboard & thick paper, etc.

Basic components & features

The QD Carbide Dot Matrix Engraver is designed for to perform signs, industrial plates and name tag marking by  using a strong alloy marking needle.

It is run by a pure-copper motor, implementing non-destructive power with high efficiency and low energy consumption.

360 degree all-round fixture, with powerful magnetic force, adjustable angle, and accurate positioning, guarntees a stable marking of the surface.

QD marking machine technical data

Marking Depth 0.1 – 1.0 mm

Compressed air range 0.2 – 0.6 MPA

Marking Stroke 190 mm x 120 mm (Customizable)

Marking Speed 3-5 words/ sec

Text marking type English

Power supply AC 110-220V, ±10% , 50Hz/ 60Hz
